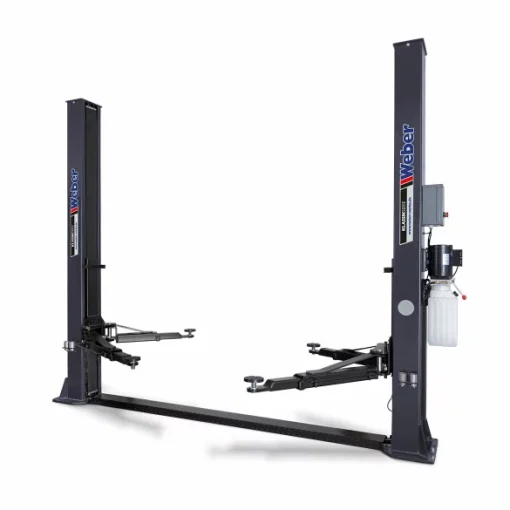

Name: 2 SÄULEN HEBEBÜHNE WEBER KLASSIK SERIE – KLASSIK 4.2M - Weber werkstatt
Price: 1300.00 EUR
Availability: InStock

Asymmetrical, telescopic support arms for large door opening angles
Support plate with rubber pad, height adjustable by turning
stable cover plate as drive-over protection between the columns
torsion-resistant column profiles
Column covers on both columns
A set of support plate extensions (4 pieces of 50 mm each) is included in the scope of delivery.
Manual unlocking of the mechanical safety latches
electronic stroke limiter
Foot deflectors as pinch protection
Easy handling thanks to 24-volt safety push-button control (dead man’s control)
low swivel height
Door protection rubbers on both pillars
wide passage, also suitable for small vans

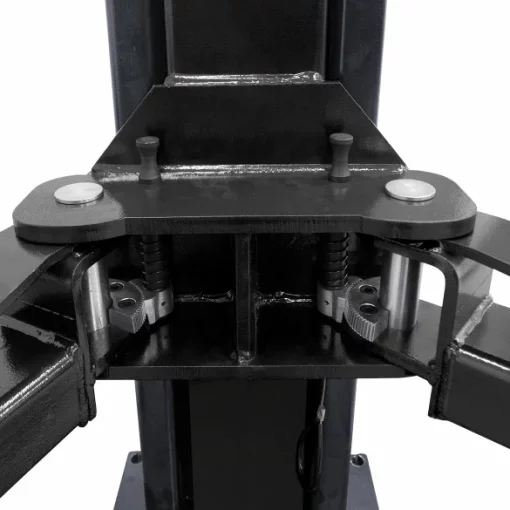

Conically fine-toothed support arm locking mechanism, automatically and manually unlockable
Low maintenance and wear, therefore low follow-up costs
powder-coated surfaces
The main components of the stage are pre-assembled.

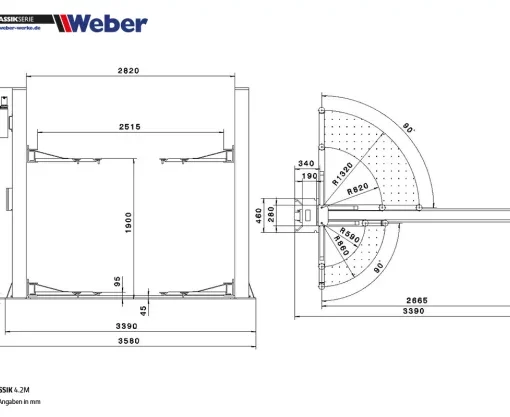

TECHNICAL DATA
Load capacity	4000 kg
Underswing height	95 mm
Maximum lifting height.	1900 mm
Column height	2860 mm
Required ceiling height	3100 mm
Column spacing	2820 mm
Passage width	2515 mm
Installation width	3580 mm
Length of long support arm	820–1320 mm
Length of short support arm	590–860 mm
Engine power	2.2 kW
Electrical connection	230 V / 1 Ph / 50 Hz
Lift time	approx. 55 sec.
Dead weight	585 kg
Color column	anthracite – RAL 7016
Color of support arms / drive-over plate	black – RAL 9017

POSSIBLE APPLICATION AREA

* The applications for our lifting platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Weber GmbH accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you.

SCOPE OF DELIVERY
