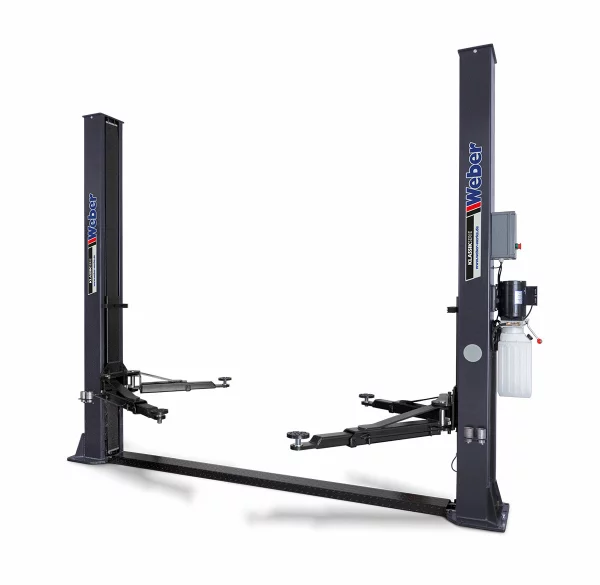

Electro-hydraulic 2-post lift for cars and small vans
- Asymmetrical, telescopic support arms for large door opening angles
- Support plate with rubber pad, height adjustable by turning
- stable cover plate as drive-over protection between the columns
- torsion-resistant column profiles
- Column covers on both columns
- A set of support plate extensions (4 pieces of 50 mm each) is included in the scope of delivery.
- Manual unlocking of the mechanical safety latches
- electronic stroke limiter
- Foot deflectors as pinch protection
- Easy handling thanks to 24-volt safety push-button control (dead man's control)
- low swivel height
- Door protection rubbers on both pillars
- wide passage, also suitable for small vans

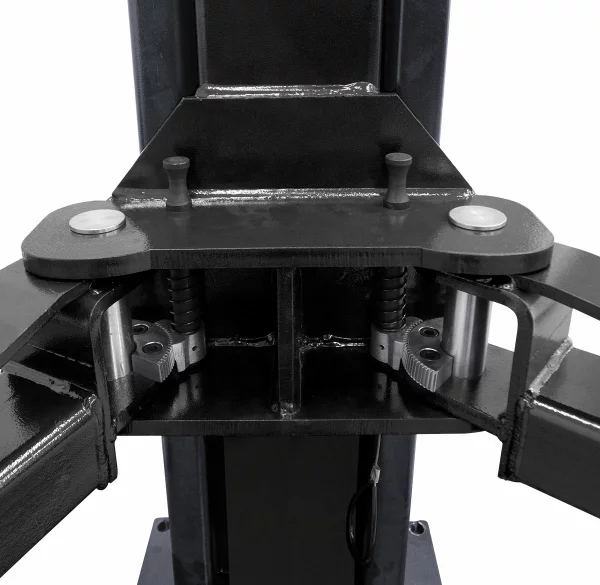

- Conically fine-toothed support arm locking mechanism, automatically and manually unlockable
- Low maintenance and wear, therefore low follow-up costs
- powder-coated surfaces
- The main components of the stage are pre-assembled.

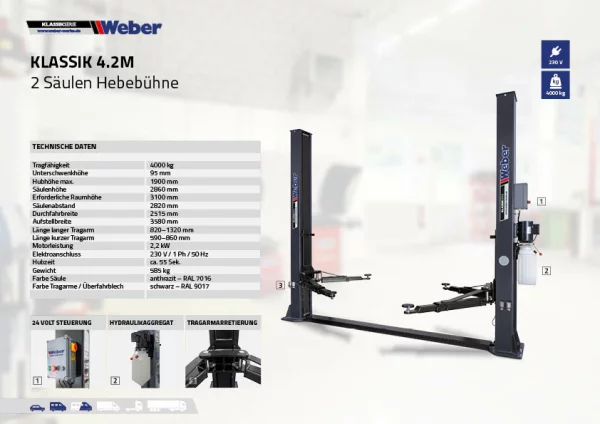

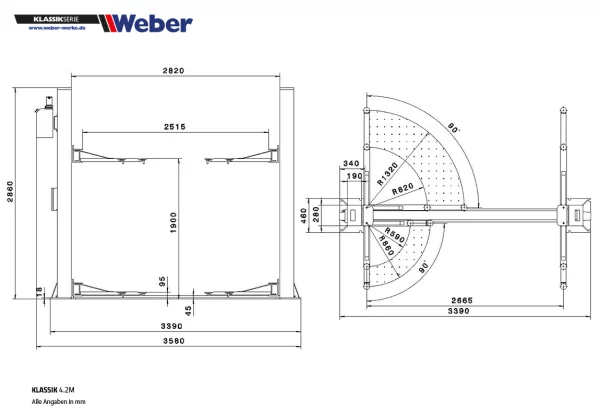

TECHNICAL DATA |
|
| Load capacity | 4000 kg |
| Underswing height | 95 mm |
| Maximum lifting height. | 1900 mm |
| Column height | 2860 mm |
| Required ceiling height | 3100 mm |
| Column spacing | 2820 mm |
| Passage width | 2515 mm |
| Installation width | 3580 mm |
| Length of long support arm | 820–1320 mm |
| Length of short support arm | 590–860 mm |

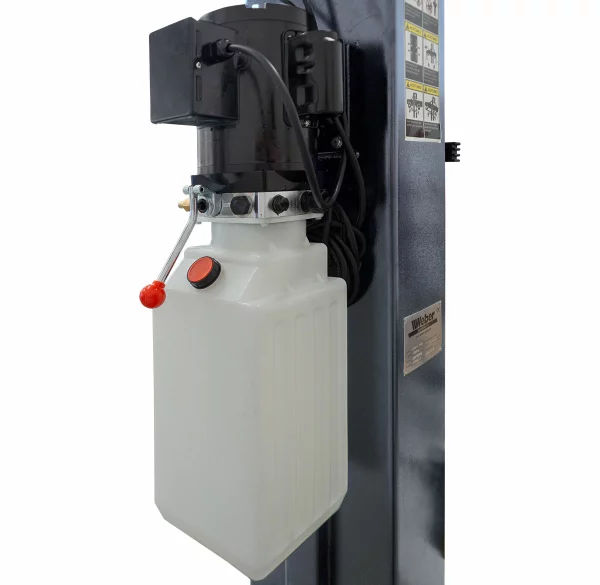

| Engine power | 2.2 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Lift time | approx. 55 sec. |
| Dead weight | 585 kg |
| Color column | anthracite – RAL 7016 |
| Color of support arms / drive-over plate | black – RAL 9017 |
POSSIBLE APPLICATION AREA
* The applications for our lifting platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Weber GmbH accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you.
SCOPE OF DELIVERY
- 2-post lift as pictured
- 4 support plate increases of 50 mm each
- German assembly and operating instructions including test log.
SHIPPING DIMENSIONS
| Item weight | approx. 585.00 kg |
| length | approx. 295.00 cm |
| Width | approx. 53.00 cm |
| Height | approx. 83.00 cm |
